| Code | Size | NB | L (mm) | L1 (mm) | D (mm) | M (mm) |
| GUB015 | 1/2″ | 15 | 52 | 40 | 31 | M10 |
| GUB020 | 3/4″ | 20 | 65 | 50 | 37 | M10 |
| GUB025 | 1″ | 25 | 65 | 50 | 44 | M10 |
| GUB032 | 1 1/4″ | 32 | 70 | 50 | 54 | M10 |
| GUB040 | 1 1/2″ | 40 | 75 | 50 | 60 | M10 |
| GUB050 | 2″ | 50 | 80 | 50 | 70 | M10 |
| GUB065 | 2 1/2″ | 65 | 90 | 50 | 88 | M12 |
| GUB080 | 3″ | 80 | 95 | 50 | 102 | M12 |
| GUB100 | 4″ | 100 | 105 | 50 | 128 | M12 |
| GUB125 | 5″ | 125 | 120 | 50 | 154 | M12 |
| GUB150 | 6″ | 150 | 135 | 50 | 180 | M12 |
| GUB200 | 8″ | 200 | 200 | 80 | 235 | M16 |
| GUB250 | 10″ | 250 | 230 | 100 | 290 | M20 |
This range of fittings are galvanised steel and supplied complete with nuts.
- Size Range: 15NB to 250NB
Value-added Services
Custom machining available on request.
- + Details
-

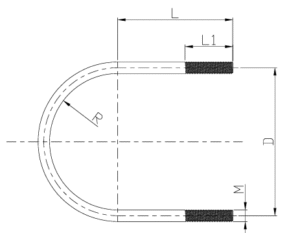

GALV U BOLT C/W NUTS
Code Size NB L (mm) L1 (mm) D (mm) M (mm) GUB015 1/2″ 15 52 40 31 M10 GUB020 3/4″ 20 65 50 37 M10 GUB025 1″ 25 65 50 44 M10 GUB032 1 1/4″ 32 70 50 54 M10 GUB040 1 1/2″ 40 75 50 60 M10 GUB050 2″ 50 80 50 70 M10 GUB065 2 1/2″ 65 90 50 88 M12 GUB080 3″ 80 95 50 102 M12 GUB100 4″ 100 105 50 128 M12 GUB125 5″ 125 120 50 154 M12 GUB150 6″ 150 135 50 180 M12 GUB200 8″ 200 200 80 235 M16 GUB250 10″ 250 230 100 290 M20 - + Features
-
This range of fittings are galvanised steel and supplied complete with nuts.
- Size Range: 15NB to 250NB
Value-added Services
Custom machining available on request.
