| Code | Size | NB | OD (O) | BOSS LENGTH (YH) | BOSS DIA (AB) | Q | PCD | BOLT HOLES | HOLE DIA |
| PSFTD100 | 4″ | 100 | 215 | 19 | 140 | 12.0 | 178 | 4 | 18 |
| PSFTD150 | 6″ | 150 | 280 | 19 | 197 | 13.0 | 235 | 8 | 18 |
This Range of flanges are mild steel AS3678-250 material and comply to AS2129 spec.
- Size Range: 100NB to 600NB
Value-added Services
Custom machining available on request.
- + Details
-

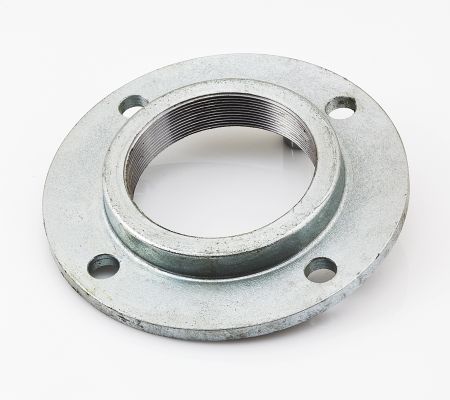

FLANGE BSP-P TABLE D GALV AS2129
Code Size NB OD (O) BOSS LENGTH (YH) BOSS DIA (AB) Q PCD BOLT HOLES HOLE DIA PSFTD100 4″ 100 215 19 140 12.0 178 4 18 PSFTD150 6″ 150 280 19 197 13.0 235 8 18 - + Features
-
This Range of flanges are mild steel AS3678-250 material and comply to AS2129 spec.
- Size Range: 100NB to 600NB
Value-added Services
Custom machining available on request.
