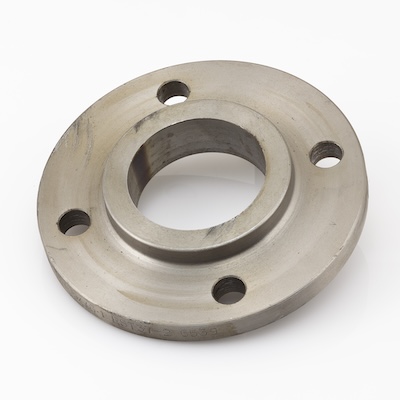

FLA300S
FLANGE ANSI 300LB RF SLIP ON WELD CARBON STEEL
A105 B16.5
| Code | Size | NB | O | SB | Q | R | YS | X | PCD | BOLT HOLES | HOLE DIA |
| FLA300015S | 1/2″ | 15 | 95.3 | 22.3 | 14.3 | 35 | 22.3 | 38.2 | 66.6 | 4 | 15.8 |
| FLA300020S | 3/4″ | 20 | 117.5 | 27.6 | 15.9 | 42.9 | 25.5 | 47.7 | 82.5 | 4 | 19 |
| FLA300025S | 1″ | 25 | 123.9 | 34.5 | 17.5 | 50.9 | 27 | 54.0 | 88.9 | 4 | 19 |
| FLA300032S | 1 1/4″ | 32 | 133.4 | 43.1 | 19.1 | 63.6 | 27 | 63.6 | 98.4 | 4 | 19 |
| FLA300040S | 1 1/2″ | 40 | 155.6 | 49.5 | 20.7 | 73.1 | 30.2 | 69.9 | 114.3 | 4 | 22.2 |
| FLA300050S | 2″ | 50 | 165.2 | 61.9 | 22.3 | 92.1 | 33.4 | 84.2 | 127.0 | 8 | 19 |
| FLA300065S | 2 1/2″ | 65 | 190.6 | 74.6 | 25.5 | 104.8 | 38.2 | 100.0 | 149.2 | 8 | 22.2 |
| FLA300080S | 3″ | 80 | 209.6 | 90.6 | 28.6 | 127.1 | 42.9 | 117.5 | 168.2 | 8 | 22.2 |
| FLA300100S | 4″ | 100 | 254.1 | 116 | 31.8 | 157.2 | 47.7 | 146.1 | 200.0 | 8 | 22.2 |
| FLA300125S | 5″ | 125 | 279.5 | 143.7 | 35.0 | 185.8 | 50.9 | 177.9 | 234.9 | 8 | 22.2 |
| FLA300150S | 6″ | 150 | 317.6 | 170.6 | 36.5 | 216 | 52.4 | 206.4 | 269.8 | 12 | 22.2 |
| FLA300200S | 8″ | 200 | 381.1 | 221.4 | 41.3 | 269.9 | 61.9 | 260.4 | 330.2 | 12 | 25.4 |
| FLA300250S | 10″ | 250 | 444.6 | 276.3 | 47.7 | 323.9 | 66.7 | 320.7 | 387.3 | 16 | 28.5 |
| FLA300300S | 12″ | 300 | 520.8 | 327.1 | 50.9 | 381.1 | 73.1 | 374.7 | 450.8 | 16 | 31.7 |
| FLA300350S | 14″ | 350 | 584.3 | 359.1 | 54.0 | 412.8 | 76.3 | 425.5 | 514.3 | 20 | 31.7 |
| FLA300400S | 16″ | 400 | 647.8 | 410.4 | 57.2 | 470 | 82.6 | 482.7 | 571.5 | 20 | 34.9 |
| FLA300450S | 18″ | 450 | 711.3 | 461.7 | 60.4 | 533.5 | 89 | 533.5 | 628.6 | 24 | 34.9 |
| FLA300500S | 20″ | 500 | 774.8 | 513 | 63.6 | 584.3 | 95.3 | 587.4 | 685.8 | 24 | 34.9 |
This range of flanges are forged steel A105 material and comply to B16.5 spec.
- Size Range: 15NB to 500NB
Value-added Services
Custom machining available on request.
