FLA150W

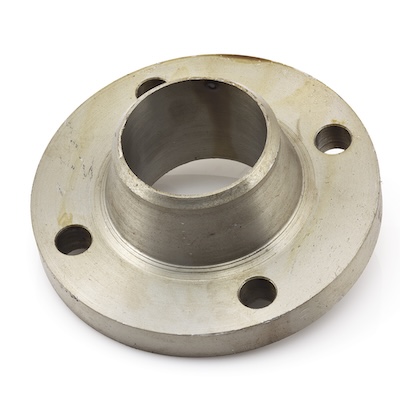

FLANGE ANSI 150LB RF STD WELD NECK CARBON STEEL
A105 B16.5

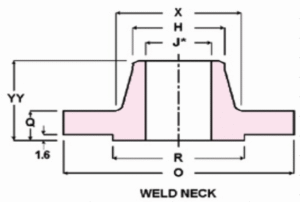

| Code | Size | NB | O | H | Q | R | YY | X | PCD | BOLT HOLES | HOLE DIA |
| FLA150015W | 1/2″ | 15 | 89 | 21.4 | 11.1 | 35.0 | 47.7 | 30.2 | 60.3 | 4 | 15.8 |
| FLA150020W | 3/4″ | 20 | 98.5 | 26.7 | 12.8 | 42.9 | 52.4 | 38.2 | 69.8 | 4 | 15.8 |
| FLA150025W | 1″ | 25 | 108 | 33.6 | 14.3 | 50.9 | 55.6 | 49.2 | 79.3 | 4 | 15.8 |
| FLA150032W | 1 1/4″ | 32 | 117.5 | 42.2 | 15.9 | 63.6 | 57.2 | 58.8 | 88.9 | 4 | 15.8 |
| FLA150040W | 1 1/2″ | 40 | 127.1 | 48.3 | 17.5 | 73.1 | 61.9 | 65.1 | 98.4 | 4 | 15.8 |
| FLA150050W | 2″ | 50 | 152.5 | 60.5 | 19.1 | 92.0 | 63.6 | 77.8 | 120.6 | 4 | 19 |
| FLA150065W | 2 1/2″ | 65 | 177.9 | 73.2 | 22.3 | 104.8 | 69.9 | 90.5 | 139.7 | 4 | 19 |
| FLA150080W | 3″ | 80 | 190.6 | 89 | 23.8 | 127.1 | 69.9 | 108 | 152.4 | 4 | 19 |
| FLA150100W | 4″ | 100 | 228.7 | 114.4 | 23.8 | 157.2 | 76.3 | 135 | 190.5 | 8 | 19 |
| FLA150125W | 5″ | 125 | 254.1 | 141.3 | 23.8 | 185.8 | 89.0 | 163.5 | 215.9 | 8 | 22.2 |
| FLA150150W | 6″ | 150 | 279.5 | 168.5 | 25.5 | 216.0 | 89.0 | 192.1 | 241.3 | 8 | 22.2 |
| FLA150200W | 8″ | 200 | 343 | 219.3 | 28.6 | 269.9 | 101.7 | 246.1 | 298.4 | 8 | 22.2 |
| FLA150250W | 10″ | 250 | 406.5 | 273.1 | 30.2 | 323.9 | 101.7 | 304.9 | 361.9 | 12 | 25.4 |
| FLA150300W | 12″ | 300 | 482.7 | 323.9 | 31.8 | 381.1 | 114.4 | 365.2 | 431.8 | 12 | 25.4 |
| FLA150350W | 14″ | 350 | 533.5 | 355.7 | 35.0 | 412.8 | 127.1 | 400.1 | 476.2 | 12 | 28.5 |
| FLA150400W | 16″ | 400 | 597 | 406.5 | 36.5 | 470.0 | 127.1 | 457.3 | 539.7 | 16 | 28.5 |
| FLA150450W | 18″ | 450 | 635.1 | 457.3 | 39.7 | 533.5 | 139.8 | 504.9 | 577.8 | 16 | 31.7 |
| FLA150500W | 20″ | 500 | 698.6 | 508.1 | 42.9 | 584.3 | 144.5 | 558.9 | 635.0 | 20 | 31.7 |
This range of flanges are forged steel A105 material and comply to B16.5 spec.
- Size Range: 15NB to 500NB
Value-added Services
Custom machining available on request.
