| Code | Size | NB | OD | WT | C | M | SCH |
| BWT015 | 1/2″ | 15 | 21.3 | 2.77 | 25.0 | 25.0 | SCH40 /STD |
| BWT020 | 3/4″ | 20 | 26.7 | 2.87 | 29.0 | 29.0 | SCH40 /STD |
| BWT025 | 1″ | 25 | 33.4 | 3.38 | 38.0 | 38.0 | SCH40 /STD |
| BWT032 | 1 1/4″ | 32 | 42.2 | 3.56 | 48.0 | 48.0 | SCH40 /STD |
| BWT040 | 1 1/2″ | 40 | 48.3 | 3.68 | 57.0 | 57.0 | SCH40 /STD |
| BWT050 | 2″ | 50 | 60.3 | 3.91 | 64.0 | 64.0 | SCH40 /STD |
| BWT065 | 2 1/2″ | 65 | 73 | 5.16 | 76.0 | 76.0 | SCH40 /STD |
| BWT080 | 3″ | 80 | 88.9 | 5.49 | 86.0 | 86.0 | SCH40 /STD |
| BWT100 | 4″ | 100 | 114.3 | 6.02 | 105.0 | 105.0 | SCH40 /STD |
| BWT125 | 5″ | 125 | 141.3 | 6.55 | 124.0 | 124.0 | SCH40 /STD |
| BWT150 | 6″ | 150 | 168.3 | 7.11 | 143.0 | 143.0 | SCH40 /STD |
| BWT200 | 8″ | 200 | 219.1 | 8.18 | 178.0 | 178.0 | SCH40 /STD |
| BWT250 | 10″ | 250 | 273.1 | 9.27 | 216.0 | 216.0 | SCH40 /STD |
| BWT300S | 12″ | 300 | 323.9 | 9.53 | 254.0 | 254.0 | STD |
| BWT350S | 14″ | 350 | 355.6 | 9.53 | 279.0 | 279.0 | STD |
| BWT400S | 16″ | 400 | 406.4 | 9.53 | 305.0 | 305.0 | STD |
| BWT450S | 18″ | 450 | 457.2 | 9.53 | 343.0 | 343.0 | STD |
| BWT500S | 20″ | 500 | 508 | 9.53 | 381.0 | 381.0 | STD |
NOTE: OD = OUTSIDE DIAMETER
WT = WALL THICKNESS
This range of fittings are forged steel A234 material and comply to B16.9 spec.
- Size Range: 15NB to 500NB
Value-added Services
Custom machining available on request.
- + Details
-

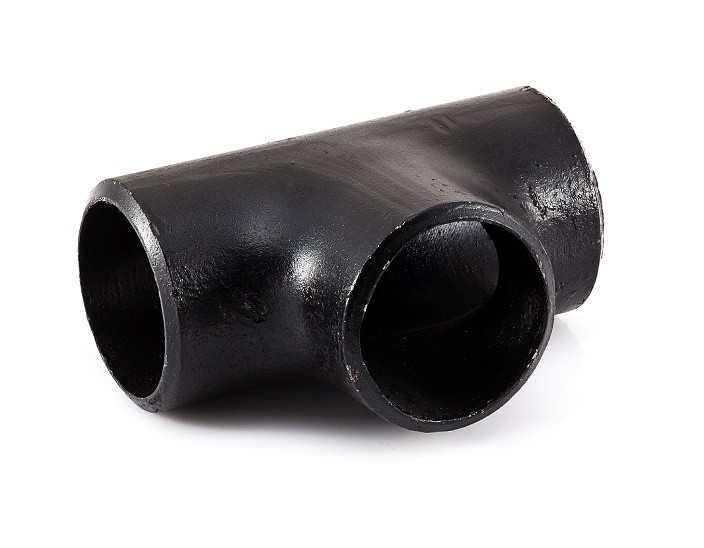

BUTTWELD EQUAL TEE STD WT A234 B16.9
Code Size NB OD WT C M SCH BWT015 1/2″ 15 21.3 2.77 25.0 25.0 SCH40 /STD BWT020 3/4″ 20 26.7 2.87 29.0 29.0 SCH40 /STD BWT025 1″ 25 33.4 3.38 38.0 38.0 SCH40 /STD BWT032 1 1/4″ 32 42.2 3.56 48.0 48.0 SCH40 /STD BWT040 1 1/2″ 40 48.3 3.68 57.0 57.0 SCH40 /STD BWT050 2″ 50 60.3 3.91 64.0 64.0 SCH40 /STD BWT065 2 1/2″ 65 73 5.16 76.0 76.0 SCH40 /STD BWT080 3″ 80 88.9 5.49 86.0 86.0 SCH40 /STD BWT100 4″ 100 114.3 6.02 105.0 105.0 SCH40 /STD BWT125 5″ 125 141.3 6.55 124.0 124.0 SCH40 /STD BWT150 6″ 150 168.3 7.11 143.0 143.0 SCH40 /STD BWT200 8″ 200 219.1 8.18 178.0 178.0 SCH40 /STD BWT250 10″ 250 273.1 9.27 216.0 216.0 SCH40 /STD BWT300S 12″ 300 323.9 9.53 254.0 254.0 STD BWT350S 14″ 350 355.6 9.53 279.0 279.0 STD BWT400S 16″ 400 406.4 9.53 305.0 305.0 STD BWT450S 18″ 450 457.2 9.53 343.0 343.0 STD BWT500S 20″ 500 508 9.53 381.0 381.0 STD NOTE: OD = OUTSIDE DIAMETER
WT = WALL THICKNESS - + Features
-
This range of fittings are forged steel A234 material and comply to B16.9 spec.
- Size Range: 15NB to 500NB
Value-added Services
Custom machining available on request.
