| Code | Size | NB | OD | WT | A | SCH |
| BWESR025 | 1″ | 25 | 33.4 | 3.38 | 25.0 | SCH40 /STD |
| BWESR032 | 1 1/4″ | 32 | 42.2 | 3.56 | 32.0 | SCH40 /STD |
| BWESR040 | 1 1/2″ | 40 | 48.3 | 3.68 | 38.0 | SCH40 /STD |
| BWESR050 | 2″ | 50 | 60.3 | 3.91 | 51.0 | SCH40 /STD |
| BWESR065 | 2 1/2″ | 65 | 73 | 5.16 | 64.0 | SCH40 /STD |
| BWESR080 | 3″ | 80 | 88.9 | 5.49 | 76.0 | SCH40 /STD |
| BWESR100 | 4″ | 100 | 114.3 | 6.02 | 102.0 | SCH40 /STD |
| BWESR125 | 5″ | 125 | 141.3 | 6.55 | 127.0 | SCH40 /STD |
| BWESR150 | 6″ | 150 | 168.3 | 7.11 | 152.0 | SCH40 /STD |
| BWESR200 | 8″ | 200 | 219.1 | 8.18 | 203.0 | SCH40 /STD |
| BWESR250 | 10″ | 250 | 273.1 | 9.27 | 254.0 | SCH40 /STD |
| BWESR300S | 12″ | 300 | 323.9 | 9.53 | 305.0 | STD |
| BWESR350S | 14″ | 350 | 355.6 | 9.53 | 356.0 | STD |
| BWESR400 | 16″ | 400 | 406.4 | 9.53 | 406.0 | STD |
| BWESR450S | 18″ | 450 | 457.2 | 9.53 | 457.0 | STD |
| BWESR500S | 20″ | 500 | 508 | 9.53 | 508.0 | STD |
NOTE: OD = OUTSIDE DIAMETER
WT = WALL THICKNESS
This range of fittings are forged steel A234 material and comply to B16.9 spec.
- Size Range: 25NB to 500NB
Value-added Services
Custom machining available on request.
- + Details
-

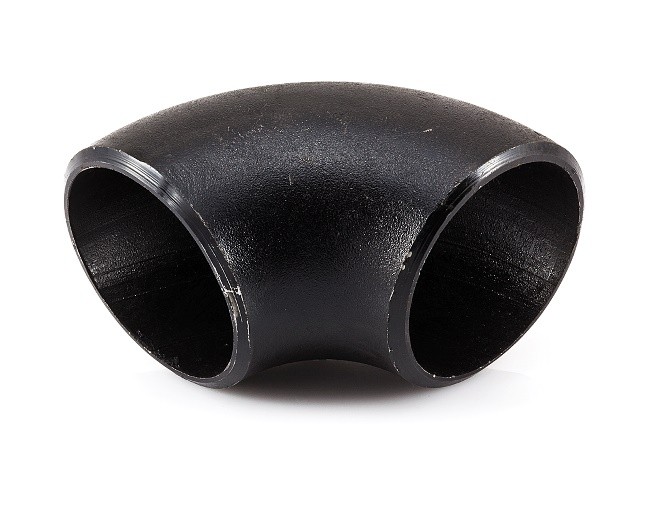

BUTTWELD ELBOW SHORT RADIUS 90 DEG STD WT A234 B16.9
Code Size NB OD WT A SCH BWESR025 1″ 25 33.4 3.38 25.0 SCH40 /STD BWESR032 1 1/4″ 32 42.2 3.56 32.0 SCH40 /STD BWESR040 1 1/2″ 40 48.3 3.68 38.0 SCH40 /STD BWESR050 2″ 50 60.3 3.91 51.0 SCH40 /STD BWESR065 2 1/2″ 65 73 5.16 64.0 SCH40 /STD BWESR080 3″ 80 88.9 5.49 76.0 SCH40 /STD BWESR100 4″ 100 114.3 6.02 102.0 SCH40 /STD BWESR125 5″ 125 141.3 6.55 127.0 SCH40 /STD BWESR150 6″ 150 168.3 7.11 152.0 SCH40 /STD BWESR200 8″ 200 219.1 8.18 203.0 SCH40 /STD BWESR250 10″ 250 273.1 9.27 254.0 SCH40 /STD BWESR300S 12″ 300 323.9 9.53 305.0 STD BWESR350S 14″ 350 355.6 9.53 356.0 STD BWESR400 16″ 400 406.4 9.53 406.0 STD BWESR450S 18″ 450 457.2 9.53 457.0 STD BWESR500S 20″ 500 508 9.53 508.0 STD NOTE: OD = OUTSIDE DIAMETER
WT = WALL THICKNESS - + Features
-
This range of fittings are forged steel A234 material and comply to B16.9 spec.
- Size Range: 25NB to 500NB
Value-added Services
Custom machining available on request.
