BWER

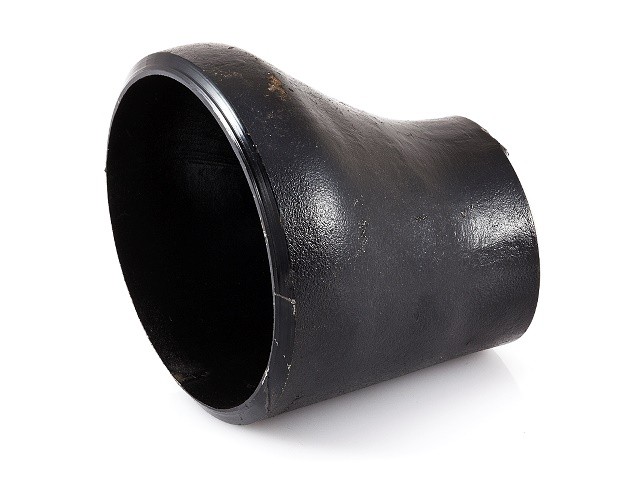

BUTTWELD ECCENTRIC REDUCER STD WT
A234 B16.9
| Code | Size | NB | OD (LARGE END) | OD (SMALL END) | WT (LARGE END) | WT (SMALL END) | H | SCH |
| BWER4015 | 1 1/2″ X 1/2″ | 40 x 15 | 48.3 | 21.3 | 3.68 | 2.77 | 64.0 | SCH40 /STD |
| BWER4020 | 1 1/2″ X 3/4″ | 40 x 20 | 48.3 | 26.7 | 3.68 | 2.87 | 64.0 | SCH40 /STD |
| BWER4025 | 1 1/2″ X 1″ | 40 x 25 | 48.3 | 33.4 | 3.68 | 3.38 | 64.0 | SCH40 /STD |
| BWER5025 | 2″ X 1″ | 50 x 25 | 60.3 | 33.4 | 3.91 | 3.38 | 76.0 | SCH40 /STD |
| BWER5032 | 2″ X 1 1/4″ | 50 x 32 | 60.3 | 42.2 | 3.91 | 3.56 | 76.0 | SCH40 /STD |
| BWER5040 | 2″ X 1 1/2″ | 50 x 40 | 60.3 | 48.3 | 3.91 | 3.68 | 76.0 | SCH40 /STD |
| BWER6540 | 2 1/2″ X 1 1/2″ | 65 x 40 | 73 | 48.3 | 5.16 | 3.68 | 89.0 | SCH40 /STD |
| BWER6550 | 2 1/2″ X 2″ | 65 x 50 | 73 | 60.3 | 5.16 | 3.91 | 89.0 | SCH40 /STD |
| BWER8050 | 3″ X 2″ | 80 x 50 | 88.9 | 60.3 | 5.49 | 3.91 | 89.0 | SCH40 /STD |
| BWER8065 | 3″ X 2 1/2″ | 80 x 65 | 88.9 | 73 | 5.49 | 5.16 | 89.0 | SCH40 /STD |
| BWER10050 | 4″ X 2″ | 100 x 50 | 114.3 | 60.3 | 6.02 | 3.91 | 102.0 | SCH40 /STD |
| BWER10065 | 4″ X 2 1/2″ | 100 x 65 | 114.3 | 73 | 6.02 | 5.16 | 102.0 | SCH40 /STD |
| BWER10080 | 4″ X 3″ | 100 x 80 | 114.3 | 88.9 | 6.02 | 5.49 | 102.0 | SCH40 /STD |
| BWER125100 | 5″ X 4″ | 125 x 100 | 141.3 | 114.3 | 6.55 | 6.02 | 127.0 | SCH40 /STD |
| BWER15080 | 6″ X 3″ | 150 x 80 | 168.3 | 88.9 | 7.11 | 5.49 | 140.0 | SCH40 /STD |
| BWER150100 | 6″ X 4″ | 150 x 100 | 168.3 | 114.3 | 7.11 | 6.02 | 140.0 | SCH40 /STD |
| BWER200150 | 8″ X 6″ | 200 x 150 | 219.1 | 168.3 | 8.18 | 7.11 | 152.0 | SCH40 /STD |
NOTE: OD = OUTSIDE DIAMETER
WT = WALL THICKNESS
This range of fittings are forged steel A234 material and comply to B16.9 spec.
- Size Range: 40NB to 200NB
Value-added Services
Custom machining available on request.
- + Details
-
BUTTWELD ECCENTRIC REDUCER STD WT A234 B16.9
Code Size NB OD (LARGE END) OD (SMALL END) WT (LARGE END) WT (SMALL END) H SCH BWER4015 1 1/2″ X 1/2″ 40 x 15 48.3 21.3 3.68 2.77 64.0 SCH40 /STD BWER4020 1 1/2″ X 3/4″ 40 x 20 48.3 26.7 3.68 2.87 64.0 SCH40 /STD BWER4025 1 1/2″ X 1″ 40 x 25 48.3 33.4 3.68 3.38 64.0 SCH40 /STD BWER5025 2″ X 1″ 50 x 25 60.3 33.4 3.91 3.38 76.0 SCH40 /STD BWER5032 2″ X 1 1/4″ 50 x 32 60.3 42.2 3.91 3.56 76.0 SCH40 /STD BWER5040 2″ X 1 1/2″ 50 x 40 60.3 48.3 3.91 3.68 76.0 SCH40 /STD BWER6540 2 1/2″ X 1 1/2″ 65 x 40 73 48.3 5.16 3.68 89.0 SCH40 /STD BWER6550 2 1/2″ X 2″ 65 x 50 73 60.3 5.16 3.91 89.0 SCH40 /STD BWER8050 3″ X 2″ 80 x 50 88.9 60.3 5.49 3.91 89.0 SCH40 /STD BWER8065 3″ X 2 1/2″ 80 x 65 88.9 73 5.49 5.16 89.0 SCH40 /STD BWER10050 4″ X 2″ 100 x 50 114.3 60.3 6.02 3.91 102.0 SCH40 /STD BWER10065 4″ X 2 1/2″ 100 x 65 114.3 73 6.02 5.16 102.0 SCH40 /STD BWER10080 4″ X 3″ 100 x 80 114.3 88.9 6.02 5.49 102.0 SCH40 /STD BWER125100 5″ X 4″ 125 x 100 141.3 114.3 6.55 6.02 127.0 SCH40 /STD BWER15080 6″ X 3″ 150 x 80 168.3 88.9 7.11 5.49 140.0 SCH40 /STD BWER150100 6″ X 4″ 150 x 100 168.3 114.3 7.11 6.02 140.0 SCH40 /STD BWER200150 8″ X 6″ 200 x 150 219.1 168.3 8.18 7.11 152.0 SCH40 /STD NOTE: OD = OUTSIDE DIAMETER
WT = WALL THICKNESS - + Features
-
This range of fittings are forged steel A234 material and comply to B16.9 spec.
- Size Range: 40NB to 200NB
Value-added Services
Custom machining available on request.
