| Code | Size | NB | OD | WT | E | SCH |
| BWC015 | 1/2″ | 15 | 21.3 | 2.77 | 25.0 | SCH40 /STD |
| BWC020 | 3/4″ | 20 | 26.7 | 2.87 | 25.0 | SCH40 /STD |
| BWC025 | 1″ | 25 | 33.4 | 3.38 | 38.0 | SCH40 /STD |
| BWC032 | 1 1/4″ | 32 | 42.2 | 3.56 | 38.0 | SCH40 /STD |
| BWC040 | 1 1/2″ | 40 | 48.3 | 3.68 | 38.0 | SCH40 /STD |
| BWC050 | 2″ | 50 | 60.3 | 3.91 | 38.0 | SCH40 /STD |
| BWC065 | 2 1/2″ | 65 | 73 | 5.16 | 38.0 | SCH40 /STD |
| BWC080 | 3″ | 80 | 88.9 | 5.49 | 51.0 | SCH40 /STD |
| BWC100 | 4″ | 100 | 114.3 | 6.02 | 64.0 | SCH40 /STD |
| BWC125 | 5″ | 125 | 141.3 | 6.55 | 76.0 | SCH40 /STD |
| BWC150 | 6″ | 150 | 168.3 | 7.11 | 89.0 | SCH40 /STD |
| BWC200 | 8″ | 200 | 219.1 | 8.18 | 102.0 | SCH40 /STD |
| BWC250 | 10″ | 250 | 273.1 | 9.27 | 127.0 | SCH40 /STD |
| BWC300S | 12″ | 300 | 323.9 | 9.53 | 152.0 | STD |
| BWC350S | 14″ | 350 | 355.6 | 9.53 | 165.0 | STD |
| BWC400S | 16″ | 400 | 406.4 | 9.53 | 178.0 | STD |
| BWC450S | 18″ | 450 | 457.2 | 9.53 | 203.0 | STD |
| BWC500S | 20″ | 500 | 508 | 9.53 | 229.0 | STD |
NOTE: OD = OUTSIDE DIAMETER
WT = WALL THICKNESS
This range of fittings are forged steel A234 material and comply to B16.9 spec.
- Size Range: 15NB to 500NB
Value-added Services
Custom machining available on request.
- + Details
-

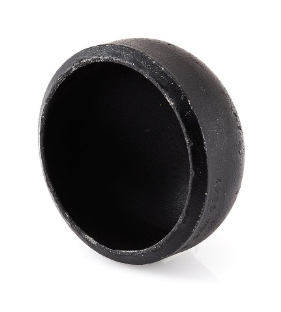

BUTTWELD CAP STD WT A234 B16.9
Code Size NB OD WT E SCH BWC015 1/2″ 15 21.3 2.77 25.0 SCH40 /STD BWC020 3/4″ 20 26.7 2.87 25.0 SCH40 /STD BWC025 1″ 25 33.4 3.38 38.0 SCH40 /STD BWC032 1 1/4″ 32 42.2 3.56 38.0 SCH40 /STD BWC040 1 1/2″ 40 48.3 3.68 38.0 SCH40 /STD BWC050 2″ 50 60.3 3.91 38.0 SCH40 /STD BWC065 2 1/2″ 65 73 5.16 38.0 SCH40 /STD BWC080 3″ 80 88.9 5.49 51.0 SCH40 /STD BWC100 4″ 100 114.3 6.02 64.0 SCH40 /STD BWC125 5″ 125 141.3 6.55 76.0 SCH40 /STD BWC150 6″ 150 168.3 7.11 89.0 SCH40 /STD BWC200 8″ 200 219.1 8.18 102.0 SCH40 /STD BWC250 10″ 250 273.1 9.27 127.0 SCH40 /STD BWC300S 12″ 300 323.9 9.53 152.0 STD BWC350S 14″ 350 355.6 9.53 165.0 STD BWC400S 16″ 400 406.4 9.53 178.0 STD BWC450S 18″ 450 457.2 9.53 203.0 STD BWC500S 20″ 500 508 9.53 229.0 STD NOTE: OD = OUTSIDE DIAMETER
WT = WALL THICKNESS - + Features
-
This range of fittings are forged steel A234 material and comply to B16.9 spec.
- Size Range: 15NB to 500NB
Value-added Services
Custom machining available on request.
