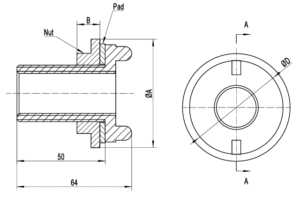

| Code | Size | NB | A (mm) | B (mm) | D (mm) |
| STF2015 | 3/4″ X 1/2″ | 20 x 15 | 47.5 | 10 | 42 |
| STF2520 | 1″ X 3/4″ | 25 x 20 | 53 | 13 | 48 |
| STF3225 | 1 1/4″ X 1″ | 32 x 25 | 67.5 | 12.5 | 55 |
| STF4032 | 1 1/2″ X 1 1/4″ | 40 x 32 | 74 | 14.5 | 65 |
| STF5040 | 2″ X 1 1/2″ | 50 x 40 | 86.5 | 14.5 | 80 |
This range of fittings are 316 stainless steel, BSPP threaded and rated 150LB.
- Size Range: 20NB to 50NB
Value-added Services
Custom machining available on request.
