3NGHNR

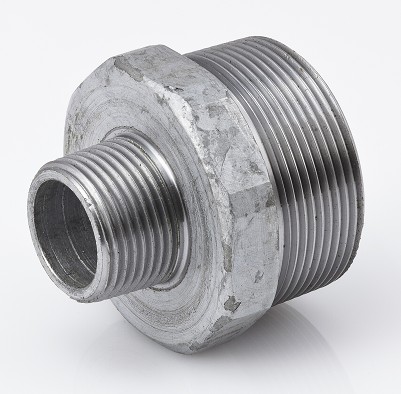

3000LB GALV STEEL REDUCING HEX NIPPLE NPT
GALVANISED 3000LB NPT A105 BS3799
| Code | Size | NB | L (mm) | D (mm) | H (mm) | W (mm) |
| 3NGHN0806 | 1/4″ X 1/8″ | 8 x 6 | 31 | 10 | 15 | 6 |
| 3NGHN1006 | 3/8″ X 1/8″ | 10 x 6 | 32 | 10 | 14 | 8 |
| 3NGHN1008 | 3/8″ X 1/4″ | 10 x 8 | 39 | 15 | 16 | 8 |
| 3NGHN1508 | 1/2″ X 1/4″ | 15 x 8 | 43 | 15 | 20 | 8 |
| 3NGHN1510 | 1/2″ X 3/8″ | 15 x 10 | 44 | 16 | 20 | 8 |
| 3NGHN2008 | 3/4″ X 1/4″ | 20 x 8 | 43 | 16 | 18 | 9 |
| 3NGHN2010 | 3/4″ X 3/8″ | 20 x 10 | 46 | 16 | 21 | 9 |
| 3NGHN2015 | 3/4″ X 1/2″ | 20 x 15 | 50 | 20 | 21 | 9 |
| 3NGHN2508 | 1″ X 1/4″ | 25 x 8 | 50 | 16 | 24 | 10 |
| 3NGHN2515 | 1″ X 1/2″ | 25 x 15 | 55 | 20 | 25 | 10 |
| 3NGHN2520 | 1″ X 3/4″ | 25 x 20 | 56 | 21 | 25 | 10 |
| 3NGHN3220 | 1 1/4″ X 3/4″ | 32 x 20 | 56 | 19 | 23 | 14 |
| 3NGHN3225 | 1 1/4″ X 1″ | 32 x 25 | 60 | 23 | 23 | 14 |
| 3NGHN4015 | 1 1/2″ X 1/2″ | 40 x 15 | 57 | 19 | 24 | 14 |
| 3NGHN4020 | 1 1/2″ X 3/4″ | 40 x 20 | 62 | 22 | 24 | 16 |
| 3NGHN4025 | 1 1/2″ X 1″ | 40 x 25 | 62 | 22 | 24 | 16 |
| 3NGHN4032 | 1 1/2″ X 1 1/4″ | 40 x 32 | 62 | 22 | 24 | 16 |
| 3NGHN5015 | 2″ X 1/2″ | 50 x 15 | 62 | 22 | 24 | 16 |
| 3NGHN5020 | 2″ X 3/4″ | 50 x 20 | 62 | 22 | 24 | 16 |
| 3NGHN5025 | 2″ X 1″ | 50 x 25 | 70 | 25 | 27 | 18 |
| 3NGHN5032 | 2″ X 1 1/4″ | 50 x 32 | 70 | 25 | 27 | 18 |
| 3NGHN5040 | 2″ X 1 1/2″ | 50 x 40 | 70 | 26 | 27 | 17 |
| 3NGHN6550 | 2 1/2″ X 2″ | 65 x 50 | 82 | 26 | 36 | 20 |
| 3NGHN8050 | 3″ X 2″ | 80 x 50 | 82 | 26 | 36 | 20 |
| 3NGHN8065 | 3″ X 2 1/2″ | 80 x 65 | 90 | 34 | 36 | 20 |
| 3NGHN10050 | 4″ X 2″ | 100 x 50 | 92 | 27 | 40 | 25 |
| 3NGHN10065 | 4″ X 2 1/2″ | 100 x 65 | 104 | 39 | 40 | 25 |
| 3NGHN10080 | 4″ X 3″ | 100 x 80 | 104 | 39 | 40 | 25 |
NOTE: 50NB AND LARGER HAVE OCTAGONAL HEAD
This range of fittings are galvanised forged carbon steel A105N, NPT threaded, rated 3000LB and comply to BS3799 spec.
- Size Range: 8NB to 100NB
Value-added Services
Custom machining available on request.
